OEM Customized Five-Point Design Flexible Steel Rectangular Spline Shaft Coupling with Keyway Tapered Structure and 2000n-m Rated Torque

OEM Customized Five-Point Design Flexible Steel Rectangular Spline Shaft Coupling with Keyway Tapered Structure and 2000n-m Rated Torque

ব্র্যান্ড নাম: WeSeW
মডেল নম্বর: CNC0184
MOQ: 1 পিসি
মূল্য: US$5~US$50 per pc
অর্থ প্রদানের শর্তাবলী: টি/টি, ওয়েস্টার্ন ইউনিয়ন
সরবরাহের ক্ষমতা: প্রতি মাসে 10,000 টুকরা
বিস্তারিত তথ্য
উৎপত্তি স্থল:
চীন
সাক্ষ্যদান:
CE, ISO9001/UL
নাম:
স্প্লাইন খাদ কাপলিং
OEM/ODM:
OEM ODM CNC মিলিং টার্নিং মেশিনিং পরিষেবা
উপাদান ক্ষমতা:
অ্যালুমিনিয়াম, পিতল, ব্রোঞ্জ, তামা, শক্ত ধাতু
আবেদন:
মেটাল কাটিং মেশিন, মেটাল স্ট্রেটেনিং মেশিনারি, মেটাল স্পিনিং মেশিনারি, মেটাল প্রসেসিং মেশিনারি পার্ট
স্ট্যান্ডার্ড:
DIN, ASTM, GOST, GB, JIS, ANSI, BS
সিএনসি মেশিনিং বা না:
সিএনসি মেশিনিং
মাইক্রো মেশিনিং বা না:
মাইক্রো মেশিনিং
প্রক্রিয়াকরণ পদ্ধতি:
গ্রাহকের ইঞ্জিনিয়ারিং অঙ্কন
প্যাকেজিং বিবরণ:
কাঠের কেস
যোগানের ক্ষমতা:
প্রতি মাসে 10,000 টুকরা
বিশেষভাবে তুলে ধরা:

Five-Point Design Spline Shaft Coupling

,

Keyway Tapered Structure Flexible Coupling

,

2000n-m Rated Torque Rectangular Spline Coupling

পণ্যের বর্ণনা
OEM Customized Machine Learning Five-Point Design Flexible Steel Rectangular Spline Shaft Coupling
High-precision flexible steel rectangular spline shaft coupling with keyway tapered structure, designed for demanding industrial applications requiring reliable torque transmission and precise alignment.
Technical Specifications
Applicable Industries Manufacturing Plant, Machinery Repair Shops, Construction Works, Energy & Mining, Other
Material Steel
Standard or Nonstandard Standard
Structure Universal
Warranty 1 year
Bore Diameter 100mm
Maximum Speed 5,000 RPM
Rated Torque 2000 N·m
Type Flexible
Outer Diameter 145mm
Bore Diameter Range 24mm ~ 65mm
Length Range 163mm - 323mm
Bore Type Finished Bore
Surface Treatment Blackening
Minimum Order Quantity 1 Set
Key Features & Benefits
  • High Load Capacity: Multi-tooth structure design with large total contact area and uniform force distribution for substantial torque transmission in heavy-duty applications
  • Excellent Alignment and Guidance: Numerous evenly distributed teeth ensure high alignment precision between shaft and hub, ideal for high-speed operation and precision transmission systems
  • High Structural Strength: Shallow keyways minimize stress concentration at tooth roots, effectively reducing strength degradation in shafts and hubs
  • Wide Application Range: Commonly used in automotive transmissions, machine tool spindles, hydraulic equipment, and other applications demanding high centering accuracy and reliability
  • Diverse Compatibility: Available in rectangular splines (small-diameter centering, easy machining) and involute splines (self-centering, higher strength)

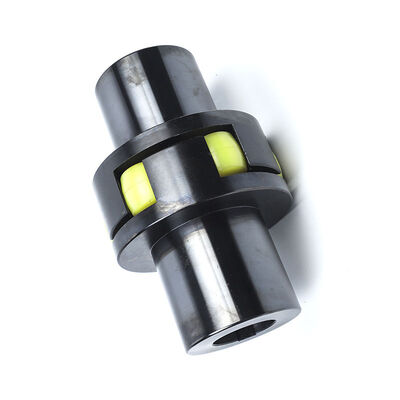

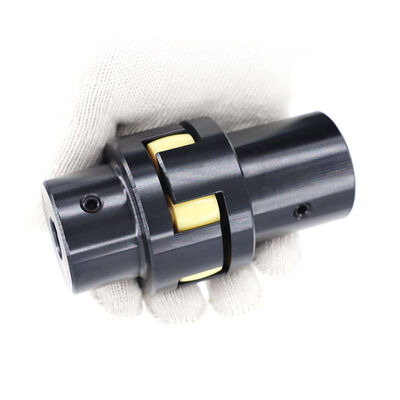

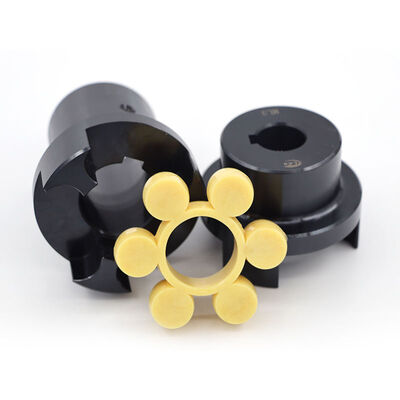

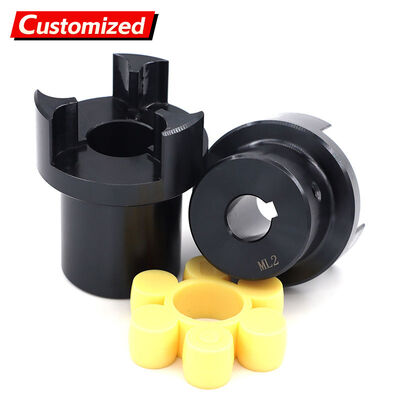

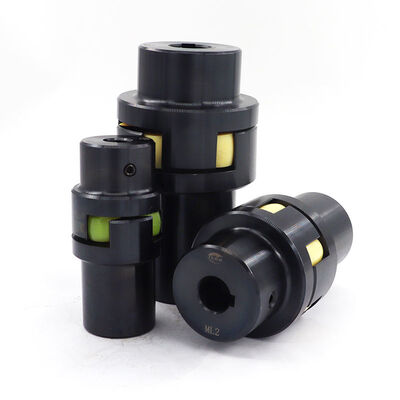

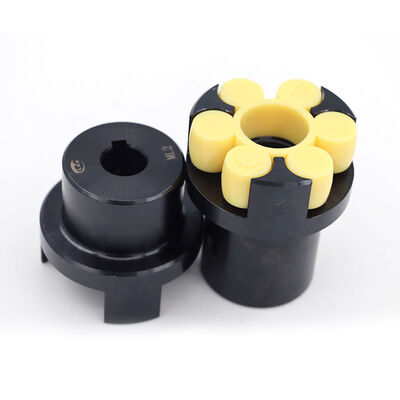

Product Images
