তাপীয় স্ক্রু কনভেয়র
Created with Pixso.

Thermal Screw Conveyor Equipment Heating and cooling jackets for thermal processing can be integrated on Twin Screw, Tubular, and U-Trough Conveyors.

Thermal Screw Conveyor Equipment Heating and cooling jackets for thermal processing can be integrated on Twin Screw, Tubular, and U-Trough Conveyors.

ব্র্যান্ড নাম: WeSeW
মডেল নম্বর: AC0085
MOQ: 1 পিসি
মূল্য: US$1500~US$30,000/set
অর্থ প্রদানের শর্তাবলী: টি/টি, ওয়েস্টার্ন ইউনিয়ন
সরবরাহের ক্ষমতা: প্রতি মাসে 100 সেট
বিস্তারিত তথ্য
উৎপত্তি স্থল:
চীন
সাক্ষ্যদান:
CE
আবেদন:
স্ক্রু ফ্লাইট পরিবাহক
প্রযোজ্য শিল্প:
খামার, যন্ত্রপাতি মেরামতের দোকান, উৎপাদন কারখানা
সেবা:
OEM/ ODM
পৃষ্ঠ চিকিত্সা:
কাস্টমাইজড
মাত্রা (L*W*H):
কাস্টমাইজড
বৈশিষ্ট্য:
উচ্চ নির্ভুলতা, খাদ্য গ্রেড
বিক্রয়োত্তর সেবা:
সরবরাহ করুন
টাইপ:
আগর
কাস্টমাইজেশন:
উপলব্ধ কাস্টমাইজড অনুরোধ
প্যাকেজিং বিবরণ:
কাঠের কেস
যোগানের ক্ষমতা:
প্রতি মাসে 100 সেট
বিশেষভাবে তুলে ধরা:

Thermal screw conveyor with heating jacket

,

Twin screw conveyor for thermal processing

,

U-Trough conveyor with cooling jacket

পণ্যের বর্ণনা

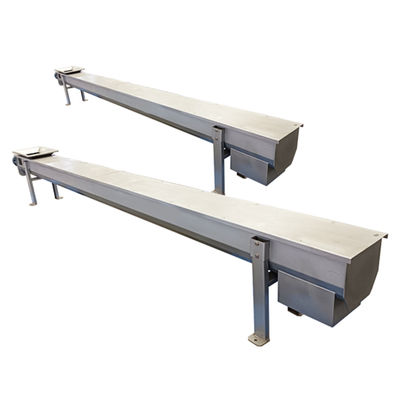

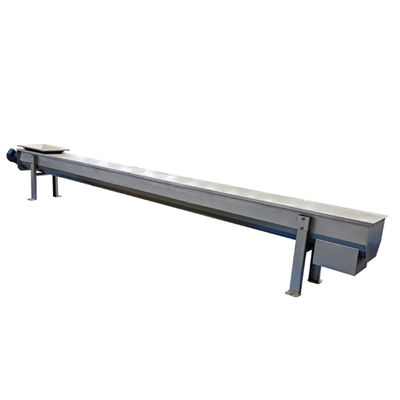

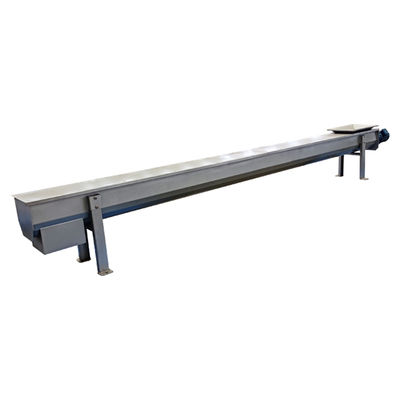

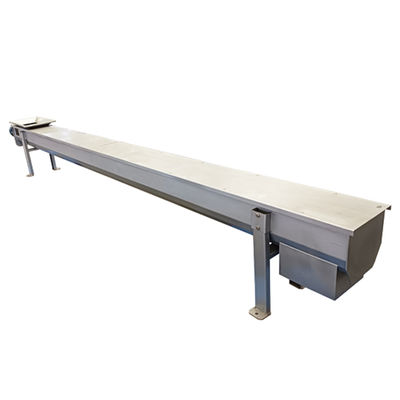

Thermal Screw Conveyor Equipment
Heating and cooling jackets for thermal processing can be integrated on Twin Screw, Tubular, and U-Trough Conveyors.
Technical Specifications
Material Stainless Steel 304/316, plywood
Voltage 380V/50Hz
Product name shaftless spiral conveyor
Features & Benefits
  • Thermal treatment occurs during conveying to eliminate secondary process steps
  • Independent jacket configuration allows parallel fluid feed for fresh temperature cycles
  • Indirect heat transfer design often eliminates need for air filtration/exhaust permits
  • Precise temperature control during material transfer for maximum efficiency
  • Accurate thermal treatment time control to meet exact process requirements
  • Greater heat transfer surface area per unit than batch mixer systems
  • Proprietary design delivers increased efficiency with smaller footprint
  • High efficiency auger with rotary unions maximizes product contact with heat surfaces
  • Chain drive with adjustable speed for varying heating/cooling processes
  • Packing gland style seals offer wide temperature and chemical compatibility
  • ASME Boiler and Pressure Vessel Code compliant for high pressure applications
Sample Applications
Heating and cooling screw conveyors are used globally for thermal processing in industries including biomass conversion, paper and pulp, biofuels, food and dairy, chemicals, petrochemicals, and minerals processing.
